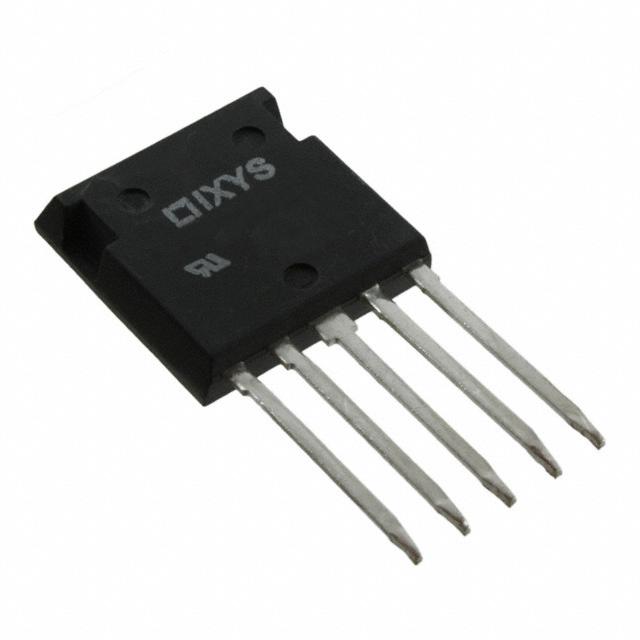

IXYS DSEI2X61-06P

Description

Mounting Type: Through Hole

Maximum Continuous Forward Current: 2 x 60A

Peak Non-Repetitive Forward Surge Current: 550A

Maximum Forward Voltage Drop: 1.8V

Rectifier Type: Fast Recovery

Number of Elements per Chip: 2

Diode Type: Rectifier

Pin Count: 8

Peak Reverse Repetitive Voltage: 600V

Reverse Recovery Time (trr): 50 ns

HTSUS: 8541.10.0080

RoHS Status: ROHS3 Compliant

Package / Case: ECO-PAC1 Diode Configuration: 2 Independent REACH Status: REACH Unaffected edacadModel: DSEI2X61-06P Models edacadModelUrl: /en/models/1651326 Speed: Fast Recovery = 200mA (Io) Manufacturer: IXYS Voltage – Forward (Vf) (Max) @ If: 1.8 V @ 60 A Voltage – DC Reverse (Vr) (Max): 600 V Moisture Sensitivity Level (MSL): 1 (Unlimited) Current – Average Rectified (Io) (per Diode): 60A standardLeadTime: 51 Weeks Current – Reverse Leakage @ Vr: 200 µA @ 600 V Mounting Type: Chassis Mount Series: FRED Supplier Device Package: ECO-PAC1 Packaging: Box Technology: Standard Base Product Number: DSEI2X61 ECCN: EAR99

This ismanufactured by IXYS. The manufacturer part number is DSEI2X61-06P. The product is available in through hole configuration. Furthermore, its maximum continuous forward current constitutes 2 x 60a. Moreover, a bespoke product has 550a peak non-repetitive forward surge current. It features 1.8v of maximum forward voltage drop. This fast recovery product is highly suited for various professionals in various settings. It consists of 2 elements per chip. It is designed with a rectifier diode. It contains 8 pins. While having the peak reverse repetitive 600v. It has a trr (reverse recovery time) of 50 ns. It is assigned with possible HTSUS value of 8541.10.0080. The product is rohs3 compliant. Moreover, the product comes in eco-pac1. The diode features a 2 independent configuration. In addition, it is reach unaffected. It has a robust speed of fast recovery = 200ma (io). The ixys’s product offers user-desired applications. The product has a maximum forward voltage of 1.8 v @ 60 a. While it has maximum reverse voltage of 600 v. Its typical moisture sensitivity level is 1 (unlimited). The average rectified current at per diode is 60a. It has a long 51 weeks standard lead time. 200 µa @ 600 v is the reverse leakage value of a bespoke product. The product is available in chassis mount configuration. The product fred, is a highly preferred choice for users. eco-pac1 is the supplier device package value. In addition, box is the available packaging type of the product. This product use standard technology. Moreover, it corresponds to dsei2x61, a base product number of the product. The product is designated with the ear99 code number.
